Control group number 3, universal control gateway, 433 MHz electronic duplicator, C/3 color set elem

What you need to know about this product

• Type of food: pile.

• With a maximum range of 50 meters.

a description

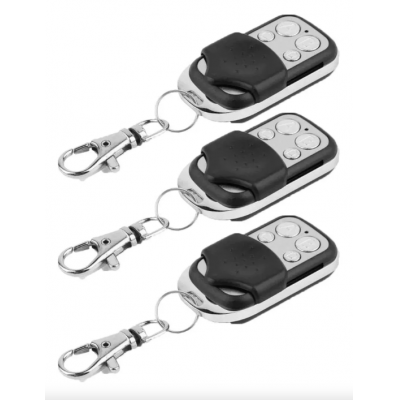

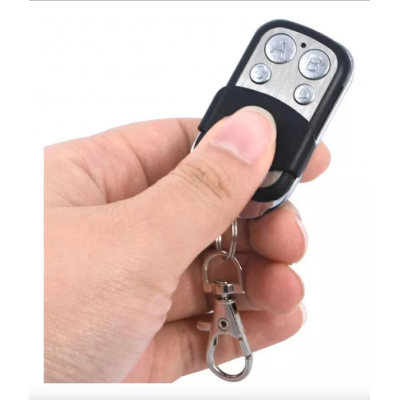

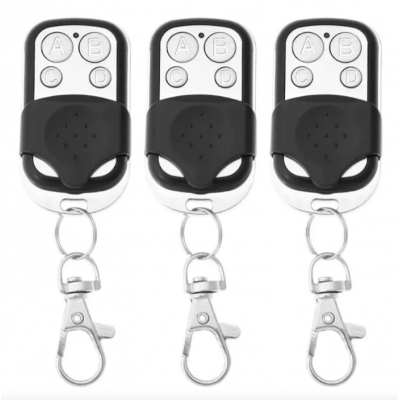

Kit with 3 programmable garage controllers - 433MHz

Programmable control system for garage/park with four-point car alarm system, automatic gate, sliding doors, etc.

Settings:
First: Reset the control:
Press the first two buttons until the LED indicator flashes. While continuing to press the first button, press button B three times (note that all buttons will flash and remain off to indicate that they are clean).
Second, program your control system:
Keep both devices very close together, press the button on the original device you want to program, and then press the button on the programming device you want to register. (Press until the LED starts flashing, and continue pressing until the LED remains lit, indicating successful operation).
Note: If the controller does not work or any button fails to program the code, perform the first step again and try to execute the schedule more than once.

specification:
Material: Plastic.
Size: 55 × 28 × 14
Type: Wireless remote control.
Nominal voltage: 27 amps, 12 volt battery (included).
Wireless transmission range: 50-150 meters (in an open space).
Operating frequency: 433 MHz
Model: HFY408g

Some compatible models:
PPA / SEG / RCG / UNISEG / Proter / Intelbras / Garen / Unisystem / Etc / Sulton / Compatec / JFL / Omega SAT / NBM / CLICK / IPEC / HOMBRUS / PISATRON CODE LEARNING

Compatible chip types:
2260 (PT2260, SC2260, LX2260, HX2260); 2262 (PT2262, SC2262, LX2262, HX2262, HX2262), PT2264, PT2240 (LX2240), 1527 (EV1527, HS1527, FP), FP, SM, SMC926, AX5026, AX5326-3, AX5326-4, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, PIC16F629, PIC16F630

Note: You cannot program variable encoding systems (Russi, Linear, and Pisenin).
